產品名稱：10米跳線JP-5D-NJ/NJ-10
產品型號：JP-5D-NJ/NJ-10
產品分類：通訊配件：跳線/天線
適用頻段：
增 益： 覆蓋范圍：

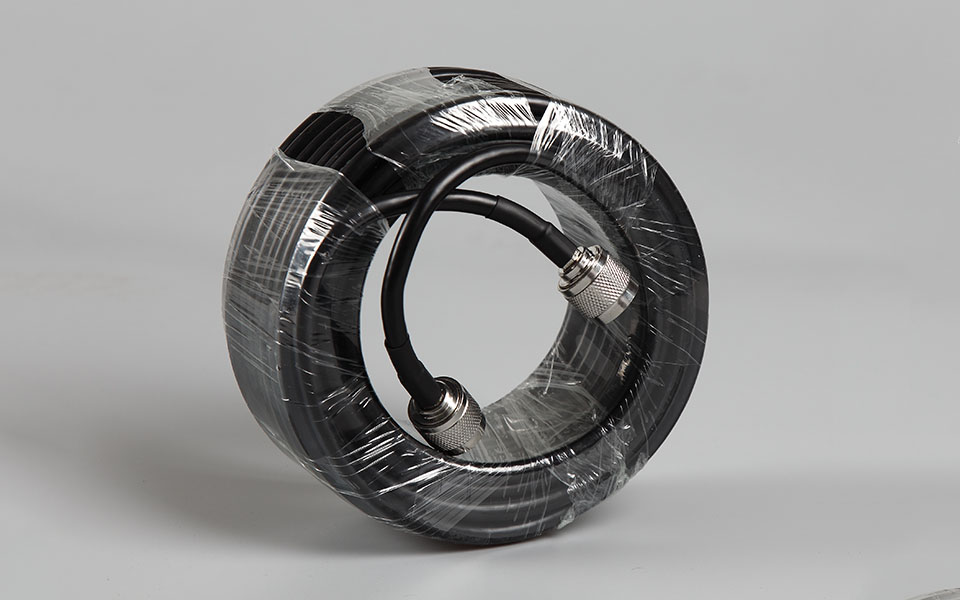

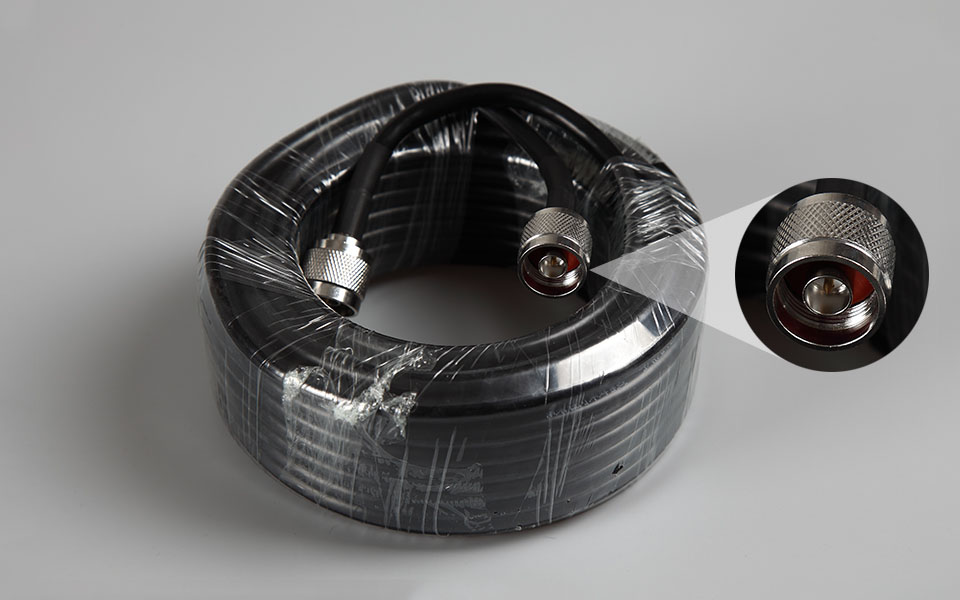

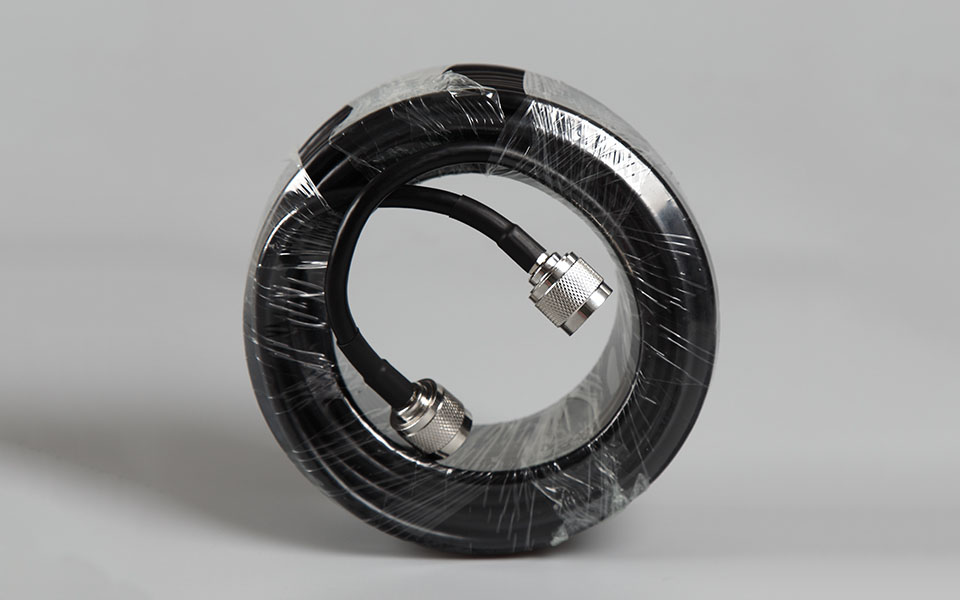

產品描述：黑色10米跳線，N接頭
產品詳情
| 產 品 規 格 書 Technical data of product | 電纜名稱 | 實芯聚乙烯絕緣同軸電纜 | |||||||
| Name of cable | Solid polyethylene insulated coaxial cables | ||||||||
| 電纜型號 | LIN-5D-50-5 | 產品標準 | GB/T14864-93 | ||||||
| Type of cable | Standard | ||||||||
| 項 目 | 產品指標 | ||||||||
| Item | Data of product | ||||||||
| 內導體 Inner conductor | 材料 | 裸銅絲 | |||||||
| Material | Bare copper | ||||||||
| 結構 | 1/1.40±0.02mm | ||||||||
| Structure | |||||||||
| 標稱截面 | 1.54 mm2 | ||||||||
| Cross-section | |||||||||
| 絕 緣 Insulation | 材料 | 聚乙烯 | |||||||
| Material | PE | ||||||||
| 平均厚度 | 1.7mm | ||||||||
| Average thickness | |||||||||
| 最薄點厚度 | 1.43mm | ||||||||
| A little bit the most thin thickness | |||||||||
| 外徑 | 4.80±0.20mm | ||||||||
| Overall diameter | |||||||||
| 外導體 Outer conductor | 材料 | 銅絲 | |||||||
| Material | Copper | ||||||||
| 編織絲直徑 | 0.12±0.05mm | ||||||||
| Diameter of braid wire | |||||||||
| 編織結構 | 16*8/0.12mm | ||||||||
| Structure of braid | |||||||||
| 編織節距 | 18.8±2.0mm | ||||||||
| Partition of braid | |||||||||
| 外徑 | 5.3 | ||||||||
| Overall diameter | |||||||||
| 外護套 Out jacket | 材料 | 聚***乙烯 | |||||||
| Material | PVC | ||||||||
| 平均厚度 | 0.9mm | ||||||||
| Average thickness | |||||||||
| 最薄點厚度 | 0.67mm | ||||||||
| A little bit the most thin thickness | |||||||||
| 外徑 | 7.20±0.20m | ||||||||
| Overall diameter | |||||||||
| 顏色 | 黑色 | ||||||||
| Color | Black | ||||||||
| 標 識 Marking | 表面印字 | LIN-5D-50-5 ****m | |||||||
| Printing | |||||||||
| 內導體最大直流電阻（20℃） | ≤45Ω/km | ||||||||
| DC Resistance of inner conductor at 20℃ | |||||||||
| 電容 | 106±3pF/m | ||||||||
| Capacitance | |||||||||
| 特性阻抗 | 50±2Ω | ||||||||
| Characteristic impedance | |||||||||
| 火花試驗電壓 | 5000V | ||||||||
| Testing voltage of spark | |||||||||
| 試驗電壓 | 10000V | ||||||||
| Testing voltage | |||||||||
| 20℃時最大衰減 Attenuation constant at 20℃（Max.） | 200MHz | 13.3dB/100m | |||||||
| 400MHz | 19.21dB/100m | ||||||||
| 900MHz | 29.72dB/100m | ||||||||
| 1800MHz | 43.63dB/100m | ||||||||
| 2000MHz | 46.30dB/100m | ||||||||
| 2400MHz | 51.35dB/100m | ||||||||
| 3000MHz | 58.37dB/100m | ||||||||
